JP China Trade Int'l Co., Ltd Professional, Honest, Golden supplier
9 Years
| Ask Lasest Price | |
| Brand Name : | JP |
| Model Number : | CR12 |
| Certification : | CE |
| Price : | $1000/set |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 100 sets per month |
| Delivery Time : | 5-8 working days |
Only one heater for both vehicle heating and hot water supply.
1.All-purpose: It can be operated with fuel or diesel, electricity
or in hybrid mode.
2.Convenience: Automatic temperature control can be realized in
conjunction with A/C
3.High efficiency: self-sufficiency and low energy consumption.
| Rated Voltage | DC12V | ||
| Operating Voltage Range | DC10.5V～16V | ||
| Short-term Maximum Power Consumption | 8-10A | ||
| Average Power Consumption | 1.8-4A | ||
| Fuel | Diesel | ||
| Diesel Heat Power (W) | 2000 | 4000 | |
| Fuel Consumption (g/H) | 240 | 510 | |
| Quiescent Current | 1mA | ||
| Warm Air Delivery Volume m3/H | 287max | ||
| Water Tank Capacity | 10L | ||
| Maximum Pressure of Water Pump | 2.8bar | ||
| Maximum Pressure of System | 4.5bar | ||
| Rated Electric Supply Voltage | ～220V | ||
| Electrical Heating Power | 900W | 1800W | |
| Electrical Power Dissipation | 3.9A | 7.8A | |
| Working (Environment) Temperature | -25℃～+80℃ | ||
| Working Altitude | ≤5000m | ||
| Weight (Kg) | 15.6Kg | ||
| Dimensions (mm) | 510×450×300 | ||
| Protection Level | IP21 | ||
Our factory was established in April 1998, located in Harbin,
Heilongjiang province.
We have an independent R&D organization and has established
long-term cooperative relationships with state key universities and
colleges like Harbin Institute of Technology, Harbin Engineering
University, etc.
Annual production is more than 150,000 sets.
We exported to Europe, the United States, Canada, Japan, and etc 60
countries. We have sole dealers in AU and UK and Denmark.

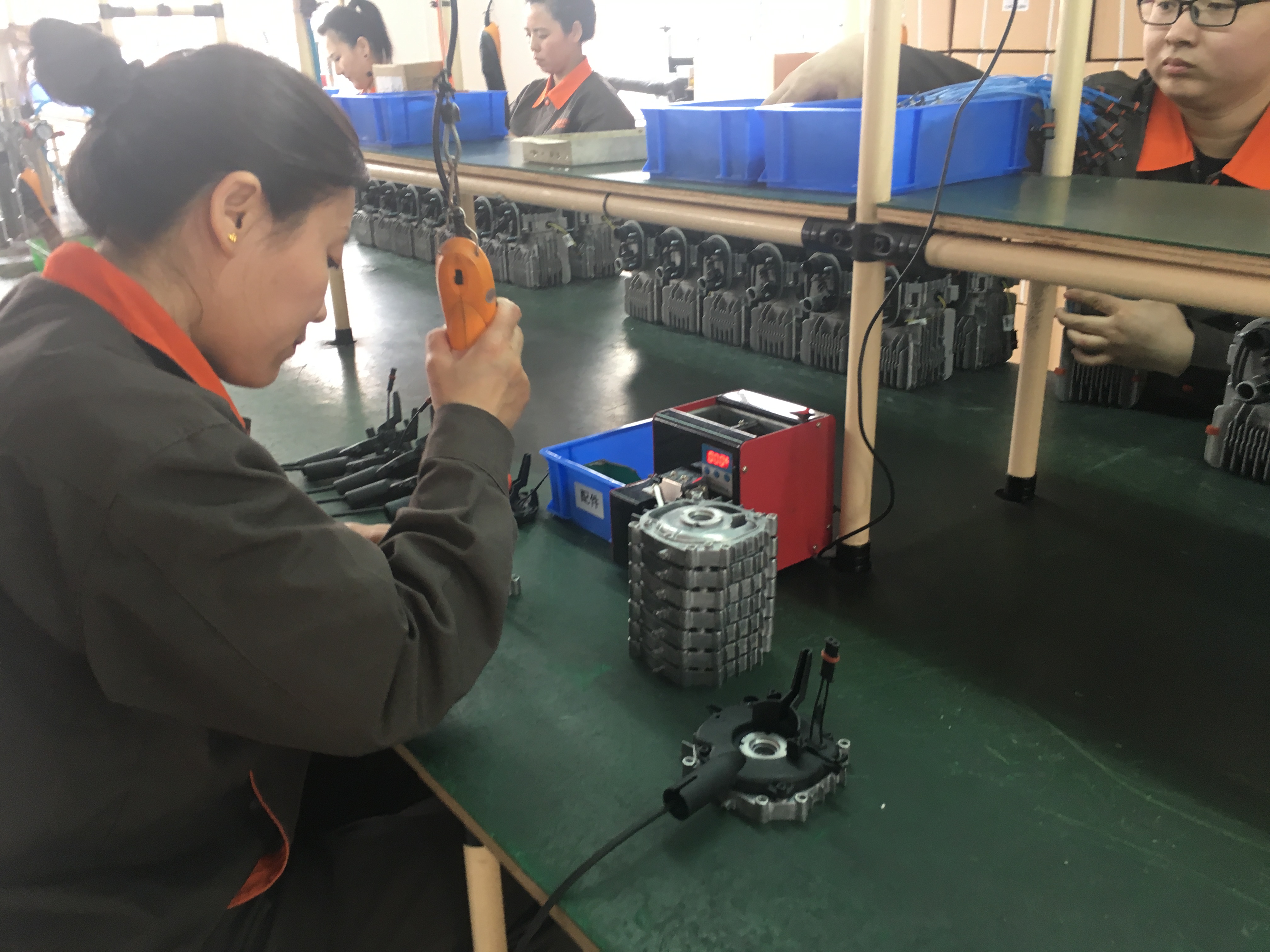

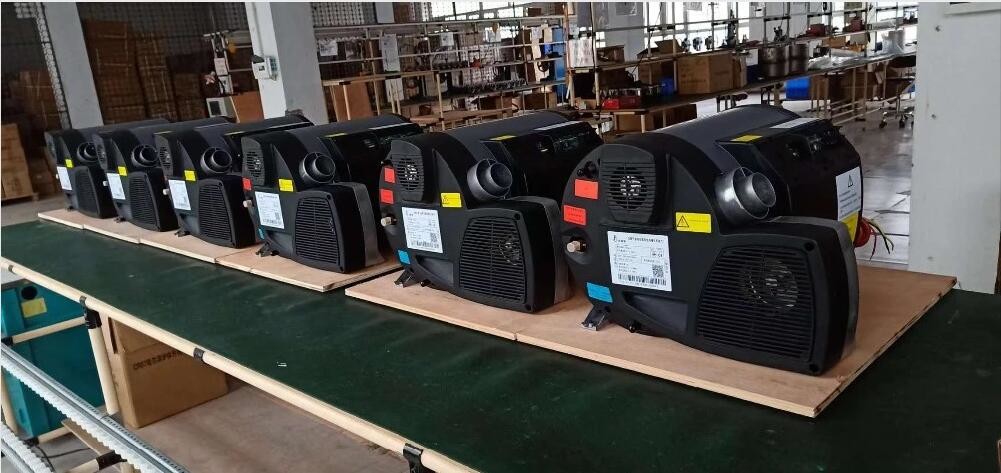

Workshop

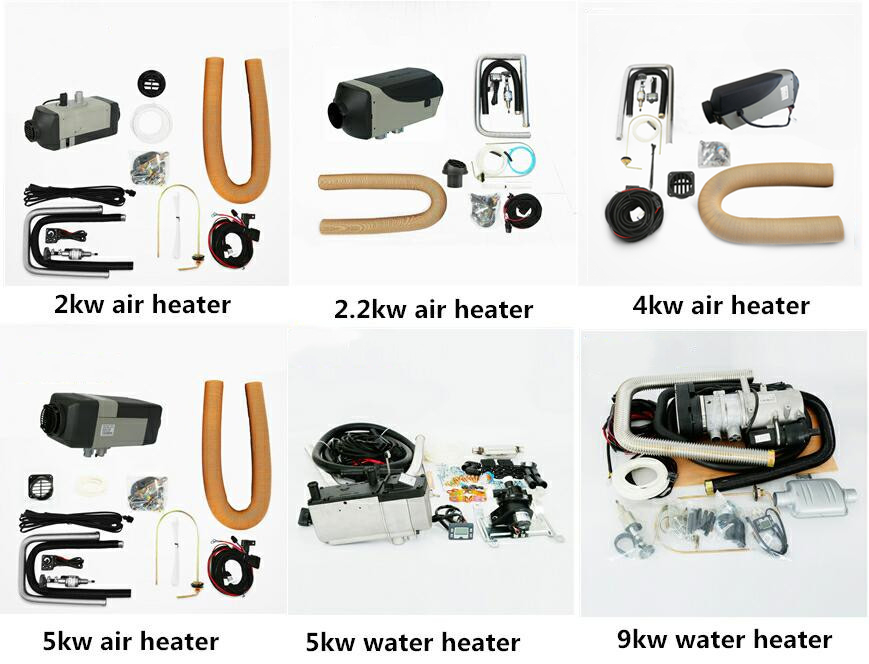

Related products
|
|
